What is an echocardiogram?
An echocardiogram is a medical test that uses sound waves to produce detailed images of the heart. It is a non-invasive procedure that helps healthcare professionals evaluate the structure and function of the heart.
During an echocardiogram, a device called a transducer is placed on the chest or sometimes inserted into the esophagus to emit high-frequency sound waves. These sound waves bounce off the structures of the heart and create echoes. The transducer detects these echoes and sends them to a computer, which then converts them into moving images of the heart on a monitor.
Echocardiograms provide valuable information about the heart's chambers, valves, and blood flow patterns. They can help diagnose various heart conditions such as heart murmurs, valve problems, heart failure, congenital heart defects, and abnormalities in the heart muscle. The test can also assess the overall pumping function of the heart, known as the ejection fraction.
There are different types of echocardiograms, including transthoracic echocardiogram (TTE), transesophageal echocardiogram (TEE), and stress echocardiogram. TTE is the most common and involves placing the transducer on the chest. TEE involves inserting a specialized transducer into the esophagus to obtain clearer images of the heart. Stress echocardiogram combines echocardiography with physical stress, such as exercise or medication, to evaluate the heart's response under increased workload.
Echocardiograms are widely used in cardiology because they are safe, non-invasive, and provide valuable information about the structure and function of the heart. The results of an echocardiogram can aid in diagnosing heart conditions, determining appropriate treatment plans, and monitoring the effectiveness of treatments.
Who performs an echo test?
Echocardiograms are typically performed by specialized healthcare professionals known as echocardiographers or cardiac sonographers. These professionals have specific training and expertise in performing and interpreting echocardiographic examinations.
Echocardiographers are skilled in operating the ultrasound equipment, positioning the transducer, and obtaining high-quality images of the heart. They work closely with cardiologists and other healthcare providers to perform and interpret the echocardiogram results accurately.
While the echocardiographer conducts the test, a team of healthcare professionals may be present during the procedure. This team can include cardiologists, nurses, or technicians who assist with patient preparation, monitoring, and post-procedure care.
It's important to note that the specific healthcare personnel involved in performing an echocardiogram may vary depending on the healthcare setting and local practices. However, echocardiographers are typically the primary individuals responsible for conducting the test and obtaining the necessary images for analysis and diagnosis.
What are the different types of echocardiogram?
There are several different types of echocardiograms, each serving a specific purpose in evaluating the heart. Here are the main types:
● Transthoracic echocardiogram (TTE):
This is the most common type of echocardiogram. It involves placing a transducer on the chest wall to obtain images of the heart. TTE provides a comprehensive evaluation of the heart's structure, function, and blood flow.
● Transesophageal echocardiogram (TEE):
TEE involves inserting a specialized transducer into the esophagus, which is located behind the heart. This proximity allows for clearer and more detailed images of the heart structures, especially the valves and the aorta. TEE is often performed when TTE images are insufficient or when a more detailed assessment is required.
● Stress echocardiogram:
This type of echocardiogram combines echocardiography with physical stress, either through exercise or medication. It is used to evaluate the heart's response to increased workload and is particularly helpful in diagnosing coronary artery disease. Stress echocardiograms can provide information about blood flow to the heart and detect any abnormalities that may only be evident during exercise.
● Dobutamine stress echocardiogram:
This is a specific type of stress echocardiogram in which a medication called dobutamine is used to simulate the effects of exercise on the heart. It is performed when a patient is unable to undergo physical exercise.
● Contrast echocardiogram:
Contrast agents, such as microbubbles, can be injected into a vein during an echocardiogram to enhance the visibility of certain structures or blood flow patterns. Contrast echocardiograms are useful in detecting specific conditions, such as small heart defects or evaluating blood flow in certain areas of the heart.
These are the main types of echocardiograms, and the choice of which one to use depends on the specific clinical question or condition being evaluated. Your healthcare provider will determine the most appropriate type of echocardiogram based on your individual circumstances.
What techniques are used in echocardiography?
Echocardiography utilizes various techniques to visualize and assess the heart. Here are some commonly used techniques in echocardiography:
■ Two-dimensional echocardiography (2D echo):
This technique provides real-time, two-dimensional images of the heart. It allows visualization of the heart's structures, including the chambers, valves, and walls. 2D echo helps assess the size, shape, and motion of different heart structures.
■ M-mode echocardiography:
M-mode stands for motion mode, and it provides a one-dimensional representation of the heart's motion over time. It allows precise measurement of various cardiac parameters, such as chamber size, wall thickness, and valve motion. M-mode is particularly useful for assessing the timing and extent of specific events, such as the opening and closing of heart valves.
■ Doppler echocardiography:
Doppler echocardiography measures the velocity and direction of blood flow within the heart and blood vessels. It utilizes the Doppler effect, which involves analyzing the changes in sound waves reflected by moving blood cells. Doppler techniques can assess the speed, volume, and turbulence of blood flow, helping to detect abnormalities in the heart's valves, blood vessels, and blood flow patterns.
■ Color Doppler:
This technique uses color coding to overlay color on the 2D echocardiogram, representing the direction and speed of blood flow. It helps visualize regurgitation (backward flow) or shunting (abnormal connections) of blood.
■ Spectral Doppler:
Spectral Doppler provides a graphical representation of blood flow velocities over time. It is commonly used to measure the velocity of blood across heart valves and can assist in diagnosing conditions such as stenosis (narrowing) or regurgitation (leakage) of valves.
■ Tissue Doppler imaging (TDI):
TDI is a specialized Doppler technique that measures the velocity of tissue motion within the heart. It evaluates the movement of specific heart structures, such as the ventricular walls and heart valves. TDI is used to assess the function of the heart muscle and identify abnormalities in its contraction and relaxation.
■ Three-dimensional echocardiography (3D echo):
3D echo provides a three-dimensional view of the heart's structures, enhancing the visualization of complex anatomy and improving the understanding of spatial relationships. It offers more comprehensive and detailed images of the heart, aiding in the assessment of congenital heart defects, valve morphology, and cardiac function.
These techniques, along with others, are employed in echocardiography to assess the structure, function, and blood flow of the heart. The choice of technique depends on the clinical question being addressed and the specific needs of the patient.
How long does an echocardiogram take?
The duration of an echocardiogram can vary depending on several factors, including the specific type of echocardiogram being performed, the complexity of the case, and the cooperation of the patient. Generally, the procedure takes about 30 minutes to an hour.
A standard transthoracic echocardiogram (TTE) typically lasts around 30 to 45 minutes. This includes the time required for the echocardiographer to position the transducer on different areas of the chest to obtain the necessary images of the heart from various angles. The echocardiographer will also evaluate different parameters and measurements during the examination.
Transesophageal echocardiograms (TEE) may take a bit longer due to the additional steps involved. TEE requires the insertion of a specialized transducer into the esophagus to obtain clearer images. The procedure involves numbing the throat with a local anesthetic and may require sedation. TEE can last anywhere from 30 minutes to an hour, including the preparation and recovery time.
In the case of stress echocardiograms, the duration can be longer due to the need for exercise or the administration of medication to induce stress on the heart. Stress echocardiograms typically take about 45 minutes to an hour or more, including the time required for the stress testing portion and the imaging before and after stress.
It's worth noting that these time estimates are general guidelines and can vary depending on individual circumstances. Some factors, such as patient cooperation, body habitus, and the need for additional image acquisition, can influence the duration of the procedure. Your healthcare provider or the echocardiography facility can provide more specific information regarding the expected duration of your particular echocardiogram.
What is an echocardiogram vs. an EKG?
An echocardiogram and an electrocardiogram (EKG or ECG) are both diagnostic tests used to evaluate the heart, but they serve different purposes and provide different types of information. Here's a comparison between the two:
Echocardiogram:
● Purpose:
An echocardiogram is an imaging test that uses ultrasound technology to produce detailed images of the heart's structures, valves, chambers, and blood flow patterns.
● Procedure:
During an echocardiogram, a transducer is placed on the chest or inserted into the esophagus. Sound waves emitted by the transducer create echoes as they bounce off the heart structures. These echoes are then processed to generate real-time images of the heart on a monitor.
● Information provided:
An echocardiogram provides information about the heart's structure, function, and blood flow. It can help diagnose conditions such as valve abnormalities, heart muscle problems, congenital heart defects, and heart failure. It also evaluates the overall pumping function of the heart, known as the ejection fraction.
EKG/ECG:
● Purpose:
An electrocardiogram is a test that measures the electrical activity of the heart.
● Procedure:
During an EKG, small electrode patches are placed on the skin of the chest, limbs, or both. These electrodes detect the electrical impulses generated by the heart as it contracts and relaxes. The impulses are recorded as waveforms, which are then displayed as a graph or series of waves on a monitor or paper.
● Information provided:
An EKG provides information about the heart's electrical activity, including the heart rate, rhythm, and any abnormalities in the conduction system. It can help diagnose conditions such as arrhythmias, heart attacks, conduction abnormalities (e.g., atrial fibrillation, heart block), and ischemia (reduced blood supply to the heart muscle).
In summary, an echocardiogram primarily focuses on imaging the heart's structures, assessing its function, and evaluating blood flow patterns. On the other hand, an EKG records the electrical activity of the heart, providing information about heart rate, rhythm, and conduction abnormalities. Both tests are valuable diagnostic tools and are often used together to provide a comprehensive evaluation of the heart.
When would I need an echocardiogram?
An echocardiogram may be recommended by your healthcare provider in various situations to evaluate the structure and function of your heart. Here are some common reasons why you might need an echocardiogram:
■ To assess heart function:
An echocardiogram can help evaluate how well your heart is pumping blood, known as the ejection fraction. It can provide information about the overall function of the heart muscle and identify any abnormalities in its contraction and relaxation.
■ To diagnose or monitor heart conditions:
Echocardiography is often used to diagnose and monitor various heart conditions, such as heart valve abnormalities (e.g., valve stenosis or regurgitation), congenital heart defects, heart failure, cardiomyopathy (disease of the heart muscle), or pericardial diseases (diseases affecting the outer lining of the heart).
■ To assess heart murmurs:
Heart murmurs are abnormal sounds heard during a heartbeat. An echocardiogram can help determine the cause and severity of a heart murmur by visualizing the heart structures and blood flow patterns.
■ To evaluate chest pain or shortness of breath:
If you experience chest pain, shortness of breath, or other symptoms suggestive of a heart problem, an echocardiogram can help assess the heart's condition and identify potential causes.
■ To monitor the effectiveness of treatment:
If you have a known heart condition, such as heart failure or heart valve disease, regular echocardiograms may be performed to monitor the effectiveness of treatments, evaluate disease progression, or assess the response to medication or interventions.
■ To assess heart function before or after surgery:
Echocardiograms are often performed before certain surgeries to evaluate the heart's function and assess any underlying heart conditions that may affect the procedure. They may also be conducted after surgery to monitor recovery and assess the success of surgical interventions.
It's important to note that the decision to undergo an echocardiogram depends on your specific symptoms, medical history, and the clinical judgment of your healthcare provider. They will evaluate your individual situation and determine whether an echocardiogram is necessary in your case.
What does an echocardiogram show?
An echocardiogram provides detailed information about the structure and function of the heart. Here are some key aspects that an echocardiogram can show:
● Heart chambers and walls:
An echocardiogram allows visualization of the heart's chambers (atria and ventricles) and the thickness of their walls. It can show if the chambers are enlarged, if the walls are thickened (indicating hypertrophy), or if there are any abnormalities in their shape or size.
● Heart valves:
Echocardiography provides a clear view of the heart valves, including the mitral valve, tricuspid valve, aortic valve, and pulmonic valve. It can show the opening and closing of the valves, assess their structure, and detect any abnormalities, such as stenosis (narrowing), regurgitation (leakage), or prolapse.
● Cardiac function:
Echocardiograms evaluate the overall function of the heart. They can measure the ejection fraction, which is the percentage of blood pumped out of the heart with each contraction. Echocardiography also assesses the motion and contraction of the heart muscle, helping to detect abnormalities in its function.
● Blood flow patterns:
Doppler echocardiography, a specific technique within echocardiography, allows visualization and evaluation of blood flow patterns in the heart and major blood vessels. It can detect abnormal flow patterns, such as regurgitation (backward flow), stenosis (narrowing), or shunting (abnormal connections).
● Congenital heart defects:
Echocardiography is instrumental in diagnosing and assessing congenital heart defects, which are structural abnormalities present at birth. It can help identify defects such as atrial or ventricular septal defects, patent ductus arteriosus, tetralogy of Fallot, and others.
● Pericardium:
The echocardiogram can visualize the pericardium, the sac-like structure that surrounds the heart. It can detect fluid accumulation (pericardial effusion) or signs of inflammation or infection in the pericardium.
These are some of the main aspects that an echocardiogram can show. The specific findings on an echocardiogram depend on the purpose of the test, the clinical question being addressed, and the individual's unique heart anatomy and condition. The results of an echocardiogram help healthcare providers diagnose heart conditions, determine treatment plans, and monitor the effectiveness of interventions.

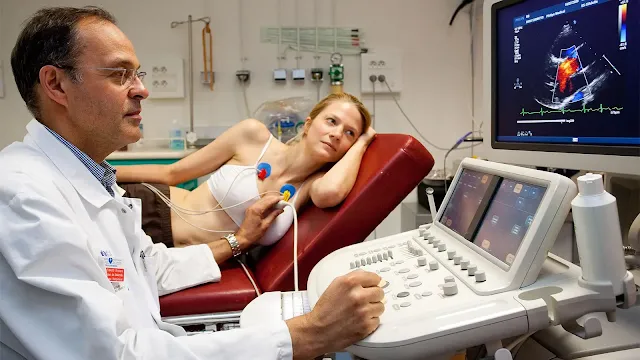

How is a transthoracic echocardiogram done?
A transthoracic echocardiogram (TTE) is a common type of echocardiogram that uses ultrasound technology to produce images of the heart from outside the chest. Here is a general overview of how a TTE is performed:
■ Preparation:
You may be asked to change into a hospital gown and remove any jewelry or clothing that could interfere with the imaging. In some cases, adhesive electrode patches may be placed on your chest to monitor your heart's electrical activity during the procedure.
■Positioning:
You will lie on an examination table on your left side or back. The echocardiographer will apply a special gel to your chest to enhance the transmission of sound waves.
■ Transducer placement:
The echocardiographer will place a handheld device called a transducer on various areas of your chest. The transducer emits and receives sound waves, which bounce off the heart structures and create echoes. The echoes are then converted into real-time images displayed on a monitor.
■ Image acquisition:
The echocardiographer will move the transducer to different positions on your chest to obtain multiple views of the heart. You may be asked to hold your breath briefly at times to reduce movement and improve image quality. The echocardiographer may also use gentle pressure with the transducer to acquire specific images or visualize specific structures.
■ Doppler evaluation:
Doppler echocardiography may be performed to evaluate blood flow patterns and velocities within the heart. The echocardiographer will apply color Doppler to visualize the direction and speed of blood flow and may use spectral Doppler to measure blood flow velocities.
■ Image interpretation:
The echocardiographer will interpret the acquired images and measurements, evaluating the heart's structure, function, and blood flow. They may take specific measurements, such as the size of heart chambers or the thickness of heart walls.
■ Completion and cleanup:
Once the necessary images have been obtained, the echocardiographer will remove the gel from your chest. You can wipe off any remaining gel with tissues or towels provided. You can then dress and resume your normal activities.
The echocardiogram images and findings will be analyzed by a cardiologist or a specialized physician to make a diagnosis or assess your heart's condition.
It's important to note that the specific steps and details of the procedure may vary slightly depending on the healthcare facility and the individual patient's needs. Your healthcare provider or the echocardiography laboratory will provide any specific instructions or additional information before the procedure.
How is a transesophageal echocardiogram done?
A transesophageal echocardiogram (TEE) is a specialized type of echocardiogram that involves inserting a probe into the esophagus to obtain detailed images of the heart. Here is an overview of how a transesophageal echocardiogram is performed:
● Preparation:
Before the procedure, you may be asked to refrain from eating or drinking for a certain period of time, usually several hours, to ensure that your stomach is empty. You will also be asked to change into a hospital gown.
● Anesthesia and sedation:
TEE is generally performed under sedation to ensure your comfort during the procedure. A local anesthetic may be sprayed or gargled to numb your throat to minimize discomfort. In some cases, an intravenous (IV) line may be placed to administer sedatives or medications.
● Positioning:
You will be positioned on your left side. The healthcare provider will place a protective mouth guard or bite block to protect your teeth and prevent damage to the probe during insertion.
● Probe insertion:
A flexible probe called a transducer is lubricated and carefully inserted into your mouth, passing through the esophagus and into the stomach. The transducer has an ultrasound probe at its tip, which emits and receives sound waves to create detailed images of the heart.
● Image acquisition:
The transducer is maneuvered to the desired positions within the esophagus to obtain high-quality images of the heart structures. The transducer emits sound waves, and the echoes produced by the heart structures are converted into real-time images displayed on a monitor. The healthcare provider may gently rotate or tilt the transducer to capture different views of the heart.
● Doppler evaluation:
Doppler echocardiography may be performed during a TEE to assess blood flow patterns and velocities within the heart. The provider may use color Doppler to visualize the direction and speed of blood flow and spectral Doppler to measure blood flow velocities.
● Image interpretation:
The acquired images and measurements are analyzed by a cardiologist or a specialized physician to make a diagnosis or assess the heart's condition. The provider may take specific measurements, evaluate valve function, and assess blood flow.
● Probe removal and recovery:
After the procedure, the transducer is carefully removed. You will be monitored in a recovery area until the effects of sedation wear off. You may experience a sore throat temporarily due to the presence of the probe during the procedure.
It's important to note that TEE is a more invasive procedure compared to a standard transthoracic echocardiogram (TTE). It allows for better visualization of certain structures that may not be adequately seen with TTE. The specific steps and details of the procedure may vary depending on the healthcare facility and the individual patient's needs. Your healthcare provider or the echocardiography laboratory will provide specific instructions and address any concerns you may have before the procedure.
How is an exercise stress echocardiogram done?
An exercise stress echocardiogram is a diagnostic test that combines an exercise stress test with an echocardiogram to evaluate the heart's response to physical activity. Here's an overview of how an exercise stress echocardiogram is typically performed:
■ Preparation:
You may be asked to wear comfortable clothing and supportive shoes suitable for exercise. Electrodes will be placed on your chest to monitor your heart's electrical activity during the test.
■ Baseline measurements:
Before starting the exercise portion, a resting echocardiogram (transthoracic echocardiogram or TTE) is performed to obtain baseline images and measurements of your heart's structure and function.
Exercise portion:
■ a. Treadmill or bicycle:
You will typically be asked to exercise on a treadmill or a stationary bicycle. The intensity of exercise gradually increases, following a pre-determined protocol or based on your physical ability.
■ b. Continuous monitoring:
Your heart rate, blood pressure, and electrocardiogram (EKG/ECG) will be continuously monitored throughout the exercise phase.
■ c. Target heart rate:
The goal is to achieve a target heart rate based on your age and physical condition, which is usually calculated as a percentage of your maximum predicted heart rate.
■ d. Symptoms assessment:
You will be asked to report any symptoms experienced during exercise, such as chest pain, shortness of breath, or fatigue.
■ Echocardiogram during exercise:
Once you reach the target heart rate or if symptoms occur, the exercise stress echocardiogram proceeds to the echocardiogram phase while you are still exercising. The echocardiographer will perform a transthoracic echocardiogram to capture images of your heart in real-time while you are on the treadmill or bicycle. This allows the evaluation of your heart's function and blood flow during exercise.
■ Recovery phase:
After reaching the target heart rate or when the exercise portion is completed, you will continue exercising at a slower pace to gradually cool down. The monitoring of your vital signs and EKG/ECG continues during this recovery phase.
■ Post-exercise measurements:
Once you have completed the exercise and entered the recovery phase, additional echocardiogram images may be acquired to assess your heart's function and any changes that may have occurred during the exercise stress portion.
■ Image interpretation:
The acquired images and measurements, both at rest and during exercise, are analyzed by a cardiologist or a specialized physician to evaluate the heart's response to exercise, identify any abnormalities, and assess for exercise-induced changes.
The exercise stress echocardiogram provides valuable information about your heart's function, blood flow, and response to exercise. It helps evaluate exercise tolerance, detect exercise-induced abnormalities, diagnose heart conditions, and guide treatment decisions.
It's important to note that the specific steps and protocols may vary depending on the healthcare facility and individual patient's needs. Your healthcare provider or the echocardiography laboratory will provide specific instructions and address any concerns you may have before the procedure.
How do I get the results of my test?
To obtain the results of your test, you will typically need to follow these steps:
● Consultation with your healthcare provider:
After the test, you will schedule a follow-up appointment with the healthcare provider who ordered the test. This is usually a cardiologist or a healthcare professional specializing in cardiac imaging. During this appointment, you will discuss the results and their implications for your health.
● Review of the results:
The healthcare provider will review the images, measurements, and findings from the test, considering your medical history, symptoms, and any other relevant information. They will interpret the results and provide you with a comprehensive assessment of your heart's condition.
● Explanation of the findings:
During the consultation, the healthcare provider will explain the results to you, including any abnormalities or areas of concern. They will discuss the significance of the findings and answer any questions you may have. If additional tests or treatments are recommended based on the results, they will provide further guidance.
● Treatment plan or further recommendations:
Depending on the results, your healthcare provider may develop a treatment plan tailored to your specific needs. This may involve lifestyle modifications, medication, further testing, or referral to a specialist for specialized care. They will provide you with clear instructions on the next steps to manage your heart health effectively.
● Access to the results:
The healthcare provider will provide you with a copy of the test report and images, as well as any other relevant documents. You may receive the results during your follow-up appointment or through a secure online portal or mail, depending on the practices of the healthcare facility.
It's essential to schedule and attend your follow-up appointment to ensure that you receive the results and have a thorough understanding of your heart health. If you have any concerns or questions about accessing your test results, it's best to communicate with your healthcare provider or their office staff for clarification and guidance.
What should you not do before an echocardiogram?
Before an echocardiogram, there are a few things you should avoid or refrain from doing to ensure the accuracy and effectiveness of the test. Here are some general guidelines:
■ Eating and drinking:
Depending on the type of echocardiogram, you may be instructed not to eat or drink anything for a certain period of time before the test. This is typically done to ensure that you have an empty stomach, as food or liquids in your stomach can interfere with the imaging and quality of the test. Follow any specific fasting instructions provided by your healthcare provider or the echocardiography laboratory.
■ Caffeine and nicotine:
It's generally recommended to avoid consuming caffeine or nicotine products before an echocardiogram. Both caffeine and nicotine can affect your heart rate and blood pressure, which may impact the interpretation of the test results.
■ Certain medications:
Inform your healthcare provider about any medications you are taking, including prescription drugs, over-the-counter medications, and supplements. They will advise you on whether you need to temporarily discontinue or adjust the dosage of certain medications before the echocardiogram. It's important to follow your healthcare provider's instructions regarding medication management.
■ Physical exertion:
Avoid engaging in strenuous exercise or physical activity on the day of the echocardiogram. Exercise can affect your heart rate and may lead to inaccurate results during the test. It's best to rest and avoid any vigorous activities before the test.
■ Body lotions or oils:
Avoid applying lotions, oils, or creams to your chest area on the day of the echocardiogram. These substances can interfere with the ultrasound transmission and may reduce the quality of the images obtained.
■ Metal objects and jewelry:
Remove any metal objects or jewelry from your chest area before the test. Metal can interfere with the ultrasound waves and affect the quality of the images. You may be asked to remove necklaces, earrings, and clothing with metallic components.
It's important to note that these guidelines may vary depending on the specific instructions provided by your healthcare provider or the echocardiography laboratory. They will provide you with detailed instructions tailored to your specific test and needs. If you have any questions or uncertainties about the preparation for the echocardiogram, it's best to consult with your healthcare provider or the facility performing the test.
